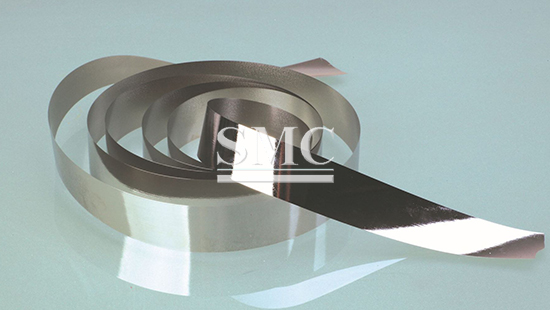

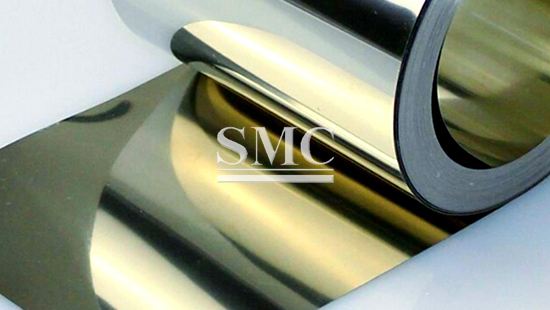

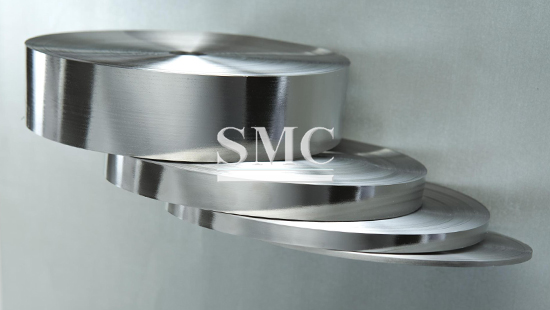

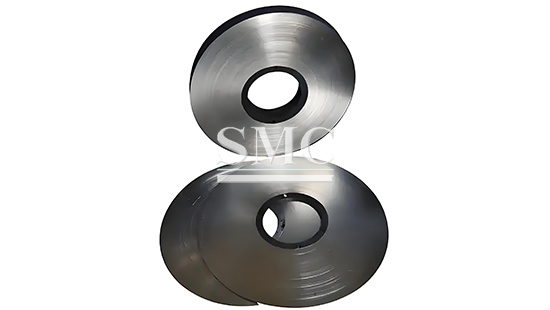

Nanocrystalline Ribbons
Material: Iron-based soft magnetic alloy
Thickness: 14-26 μm
Length: 2-80 mm
Shanghai Metal Corporation is a nanocrystalline ribbons manufacturer and supplier.
Iron based nanocrystalline strip is an iron-based soft magnetic alloy materials with nanocrystalline structures (grain size ~10nm). With excellent soft-magnetic properties such as high saturation flux density (Bs), high permeability, and low core loss, it is widely used in electrical power, industrial power supply, renewable energy, railway & transportation, consumer electronics, wireless charging, etc.

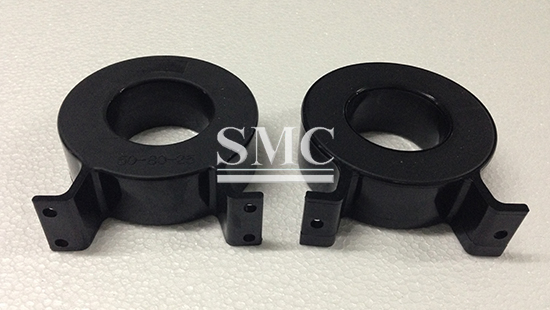

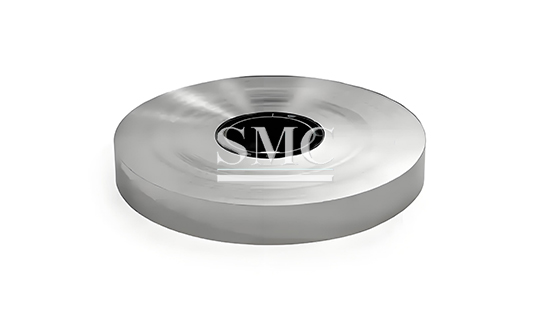

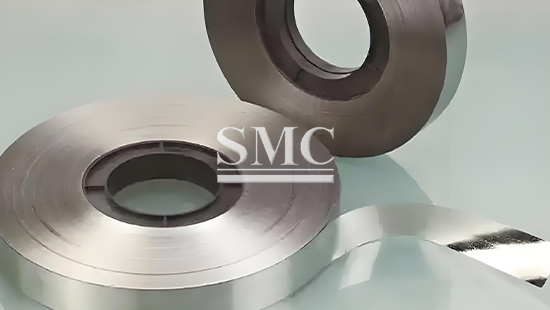

The thickness of iron based nanocrystalline strip is 14-26 microns (measured thickness), and the width is 2-80mm. It can be used to produce various magnetic components such as iron cores, devices, or shielding sheets, which can well meet the performance requirements of high frequency and low loss, and help electronic devices develop towards high frequency, miniaturization, and lightweight.
If you want to know more about our nanocrystalline ribbons or nanocrystalline ribbons’s price, please feel free to contact us, we will reply you within 24 hours.
Technical Information of Nanocrystalline Ribbons:
|
Grade |
Available Thickness |
Stacking Factor |
Saturation Flux Density |
Coercivity |
Application (For Reference) |
||||||
|
High Frequency Power Transformer (HFPT) |
Common Mode Choke (CMC) |
||||||||||
|
t [μm] |
% |
Bs[T] |
Hc[A/m] |
Select |
Pcm [W/kg] |
μ0.08 |
Select |
Pcm [W/kg] |
μ |
μ |
|
|
(20kHz,0.5T) |
(100kHz,0.3T) |
(10kHz) |
(100kHz) |
||||||||
|
1K107B |
23-26 |
78-84 |
1.24 |
≤1.5 |
√ |
≤20 |
30,000~60,000 |
\ |
\ |
\ |
\ |
|
20-23 |
78-84 |
√ |
≤15 |
30,000~60,000 |
√ |
≤80 |
80,000 |
15,000 |
|||
|
17-20 |
75-82 |
√ |
≤12 |
30,000~60,000 |
√ |
≤70 |
75,000 |
25,000 |
|||
|
14-17 |
75-82 |
\ |
\ |
\ |
√ |
≤60 |
70,000 |
30,000 |
|||
|
1K107BW |
22-28 |
78-84 |
1.24 |
≤1.5 |
√ |
≤15 |
\ |
√ |
≤85 |
80,000 |
15,000 |
|
1K107E |
18-22 |
78-84 |
1.24 |
≤1.5 |
\ |
\ |
\ |
\ |
\ |
\ |
\ |
|
1K107O |
22-28 |
78-84 |
1.24 |
≤1.5 |
\ |
\ |
\ |
\ |
\ |
\ |
\ |
|
1K107W |
14-26 |
75-84 |
1.24 |
≤1.5 |
\ |
\ |
\ |
\ |
\ |
\ |
\ |
|
1K107H |
18-26 |
78-84 |
1.4 |
≤2.5 |
\ |
\ |
\ |
\ |
\ |
\ |
\ |
|
FN-200 |
20-23 |
78-84 |
1.25 |
≤2.0 |
\ |
\ |
\ |
√ |
≤90 |
20,000 |
12,000 |
|
FN-100 |
17-20 |
78-84 |
≤2.5 |
\ |
\ |
\ |
√ |
≤90 |
8,500 |
7,500 |
|
|
FN-080 |
|
78-84 |
≤2.5 |
\ |
\ |
\ |
√ |
≤90 |
5,500 |
5,000 |
|
|
FN-035 |
|
78-84 |
≤3.0 |
\ |
\ |
\ |
√ |
≤90 |
4,500 |
4,500 |
|
Packaging of Nanocrystalline Ribbons:

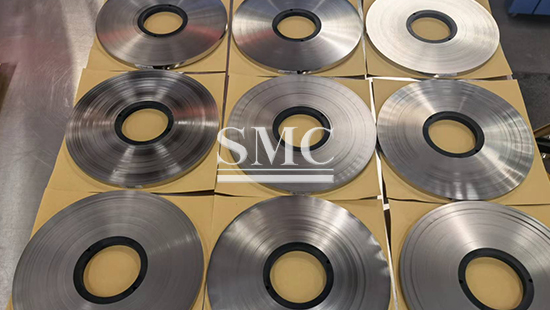

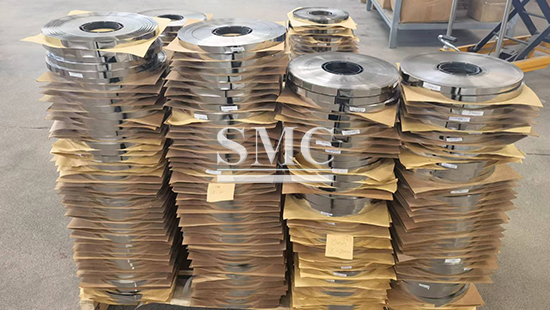

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
here
for
price
