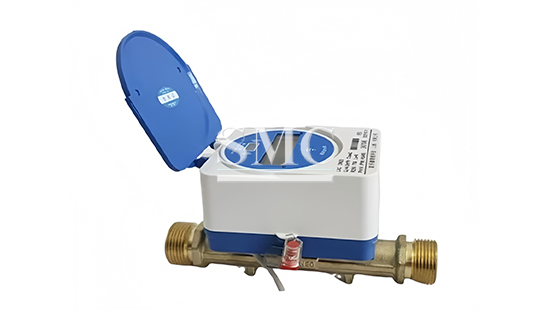

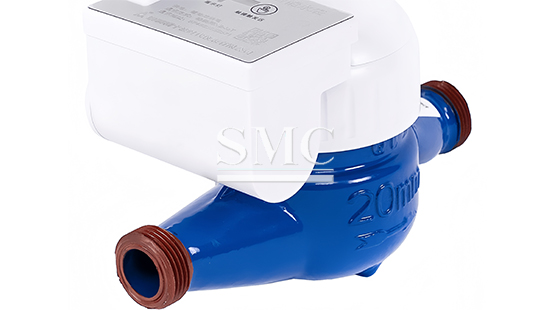

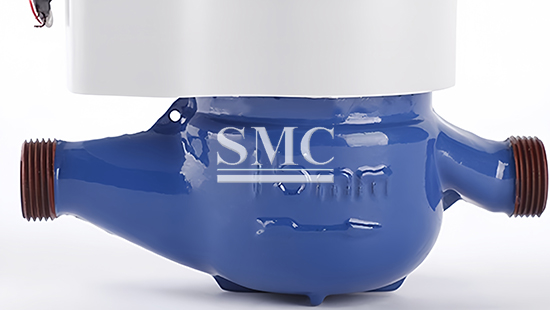

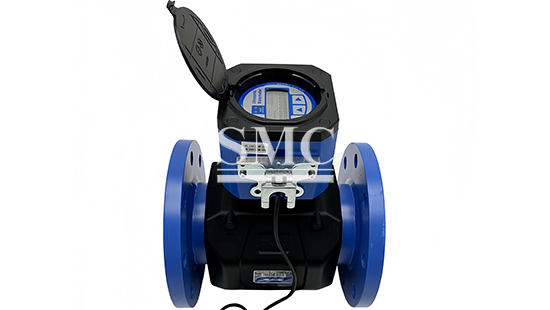

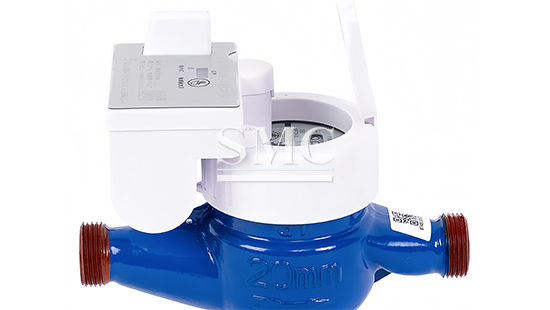

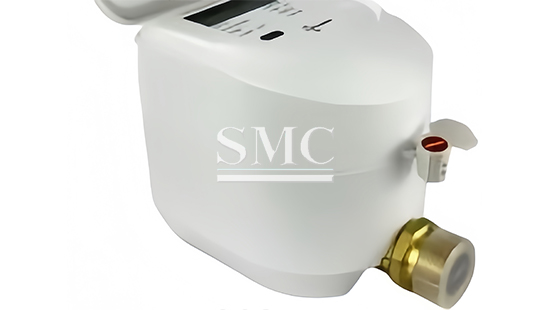

Ultrasonic Smart Water Meter

Accuracy Class: Class 1, Class 2

Range Ratio: R160 (default), R200, R250, R400, R800 (optional)

Nominal Diameter: DN15~DN40

Nominal Pressure: 1.0MPa

Product Detail | Technical Information | Packaging

Product Detail

Shanghai MAC is a leading Ultrasonic smart water meter manufacturer and supplier.

Ultrasonic smart water meters use the ultrasonic time-of-flight method to measure water flow, combined with communication modules such as NB-IoT/LoRa, to achieve high-precision metering and remote data transmission. The products feature IP68 protection, low power consumption, and support functions such as prepaid billing and abnormal water usage monitoring. They are suitable for residential communities, commercial buildings, and smart water management scenarios, effectively improving water supply management efficiency and reducing pipeline leakage.

If you want to know more about our Ultrasonic smart water meter, please feel free to contact us, we will reply you within 24 hours.

Pressure loss: ≤△P40
Temperature rating: T30 (default)/T50/T90 (optional), -25℃-55℃
Communication interface: RS-485/M-BUS/Infrared/NB-IOT/LORA
Protection rating: IP68
Measurement cycle: 4 times/second

Urban Residential Communities: Individual metering, remote meter reading, prepaid management, and water meter upgrades for older residential areas.
Commercial and Public Buildings: Water metering for office buildings, shopping malls, hotels, schools, hospitals, government agencies, and other public facilities.
Industrial Parks and Enterprises: Water usage for factory production, internal water management for enterprises, energy consumption monitoring and cost accounting.

Municipal Water Supply and Water Companies: Monitoring of urban water supply networks, zoned metering, leakage control, and unified management through a smart water management platform.
Rural Safe Drinking Water Projects: Centralized water supply in townships and rural areas, intelligent meter reading, and water conservation management.
Special Water Use Scenarios: Secondary water supply pump stations, sewage treatment plants, water conservancy facilities, and water metering for heat pumps/central air conditioning circulating water, etc.

Technical Information of Ultrasonic Smart Water Meter:

Measured Medium	Potable water (other liquids require customization), and the pipe must be full
Accuracy Class	Class 2
Range Ratio	R160 (default), R200, R250, R400, R800 (optional)
Nominal Diameter	DN15~DN40
Nominal Pressure	1.0MPa
Working Environment (Environmental Class)	Class B
Pressure Loss	≤△P40
Temperature Class	T30 (default) / T50 / T90 (optional)
Upstream Flow Sensitivity Class	U5
Downstream Flow Sensitivity Class	D3
EMC Class	Class E1
Communication Interface	RS-485 / M-BUS / Infrared / NB-IoT / LoRa
Power Supply	Built-in lithium battery (3.6V)
Ingress Protection Rating	IP68
Button	Touch button
LCD Display	LCD displays cumulative flow, instantaneous flow, as well as status prompts and units
Data Storage	Data is stored in EEPROM, automatically recording cumulative flow for the last 24 months
Measurement Cycle	4 times/second
Average Power Consumption	<100μA
Working Environment (Temperature & Humidity)	-25℃~55℃, ≤93%RH

Packaging of Ultrasonic Smart Water Meter:

Fill the carton with cushioning material for packaging
