Flow: 55-10000 (m³/min)
Working Presssure: 1.6-160 bar
Media: air/vapor/N₂/CO/ CO₂/ NH₃ etc.
Shanghai Mac is a leading Centrifugal Compressor manufacturer and supplier.
Air compressor is a core component that every big-scale factory must equip with. We provide full solutions of the three main types of air compressor: diaphragm compressor, reciprocating compressor and centrifugal compressor. Centrifugal compressor is a type of velocity compression equipment that uses a high-speed rotating impeller to generate centrifugal force, thereby converting the kinetic energy of gas into pressure energy. They are widely used in industrial scenarios that require large flow rates and high-quality compressed air, like petrochemical industry, metallurgy, new energy, pharmacy, etc. Our centrifugal compressor has excellent structural design to provide continuous, stable, oil-free and high quality compressed gas within minimum maintenance workload. Its high efficiency can fully meet the need of various processes and gas systems in factories.
If you want to know more about our other Compressor products or Centrifugal Compressor price please feel free to contact us, we will reply you within 24 hours.
Technical Information of Centrifugal Compressor:
|
Parameters of Multi-shaft and Multi-stage Compressors |
|||
|
Model |
Pressure |
Flow Range |
Rated Power |
|
|
bar(G) |
m³/min |
kW |
|
SHM6000 |
1.8-13 |
55-100 |
220-800 |
|
SHM15000 |
1.8-30 |
100-250 |
315-2240 |
|
SHM25000 |
1.8-30 |
220-370 |
630-3550 |
|
SHM30000 |
1.8-30 |
310-450 |
800-4500 |
|
SHM45000 |
1.8-16 |
450-700 |
1250-5000 |
|
SHM60000 |
1.8-16 |
600-1000 |
1700-7400 |
|
SHM100000 |
1.8-16 |
1000-1600 |
2600-12000 |
|
SHM150000 |
1.8-16 |
1600-2500 |
4200-17500 |
|
SHM250000 |
1.8-16 |
2500-4000 |
6200-28000 |

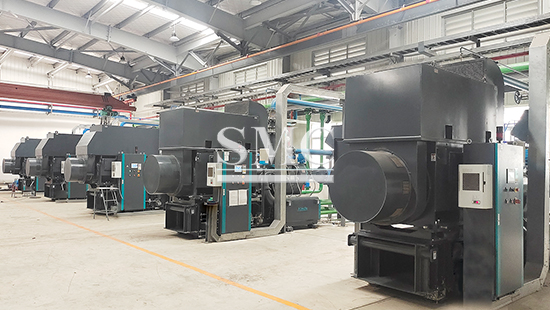

Packaging of Centrifugal Compressor:
