CPVC Flange Type Diaphragm Valve
Size range: 1/2" to 8" (DN15 to DN200)
Pressure: 150 PSI (PN10/PN16) at 73°F (23°C)
Temperature: 0°C to 95°C (32°F to 203°F)
Body Material: Chlorinated Polyvinyl Chloride (CPVC), EPDM (Diaphragm)
Optional actuators: manual, electric, pneumatic
Shanghai Mac Corporation is a leading CPVC Flange Type Diaphragm Valve manufacturer.
CPVC Flange Type Diaphragm Valve is engineered for superior performance in handling the most aggressive corrosive fluids. Manufactured from high-quality Chlorinated Polyvinyl Chloride (CPVC), this valve is the ideal, cost-effective solution for chemical processing, water treatment, and industrial applications where maximum reliability and corrosion resistance are critical.The robust flange connection design ensures a secure, leak-proof seal for demanding high-pressure piping systems.
If you want to know more about CPVC Flange Type Diaphragm Valve, please feel free to contact us, we will reply you within 24 hours.
Technical Information of CPVC Flange Type Diaphragm Valve
|
DN(mm) |
D1 |
D |
L |
h |
n |
OD |
||||||
|
GB |
JIS |
ANSI |
GB |
JIS |
ANSI |
GB |
JIS |
ANSI |
||||
|
15(1/2") |
95 |
65 |
70 |
2.38 |
125 |
14 |
4 |
4 |
4 |
14 |
15 |
16 |
|
20(3/4") |
105 |
75 |
75 |
2.76 |
135 |
18 |
4 |
4 |
4 |
14 |
15 |
16 |
|
25(1") |
115 |
85 |
90 |
3.13 |
145 |
18 |
4 |
4 |
4 |
14 |
19 |
16 |
|
32(11/4") |
135 |
100 |
100 |
3.45 |
160 |
18 |
4 |
4 |
4 |
18 |
19 |
16 |
|
40(11/2") |
145 |
110 |
105 |
3.88 |
180 |
20 |
4 |
4 |
4 |
18 |
19 |
16 |
|
50(2") |
160 |
125 |
120 |
4.74 |
210 |
21 |
4 |
4 |
4 |
18 |
19 |
19 |
|
65(21/2") |
180 |
145 |
140 |
5.49 |
250 |
22 |
4 |
4 |
4 |
18 |
19 |
19 |
|
80(3") |
195 |
160 |
150 |
6 |
300 |
24 |
8 |
8 |
4 |
18 |
19 |
19 |
|
100(4") |
215 |
180 |
175 |
7.5 |
350 |
26 |
8 |
8 |
8 |
18 |
19 |
19 |
|
125(5") |
245 |
210 |
210 |
8.5 |
400 |
30 |
8 |
8 |
8 |
18 |
23 |
22 |
|
150(6") |
280 |
240 |
240 |
9.51 |
455 |
30 |
8 |
8 |
8 |
22 |
23 |
22 |
|
200(8") |
335 |
295 |
290 |
11.75 |
570 |
35 |
8 |
12 |
8 |
22 |
23 |
22 |
|
250(10") |
390 |
350 |
355 |
14.25 |
680 |
38 |
12 |
12 |
12 |
22 |
25 |
25 |
|
300(12") |
445 |
400 |
400 |
17 |
680 |
38 |
12 |
16 |
12 |
22 |
25 |
25 |
Packaging of CPVC Flange Type Diaphragm Valve
Shanghai Mac Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. Paper carton, Pearl cotton carton, Wooden Case is adopted. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Mac Standard
2) Customization

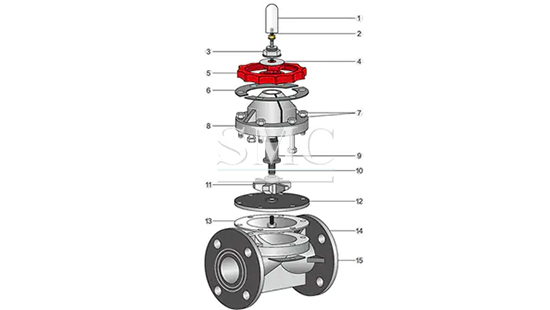

Drawing of CPVC Flange Type Diaphragm Valve
here
for
price
