Delivery condition: Finishing delivery
Shanghai MAC is a professional manufacturer and supplier of Reciprocating Compressor with high quality and reasonable price.

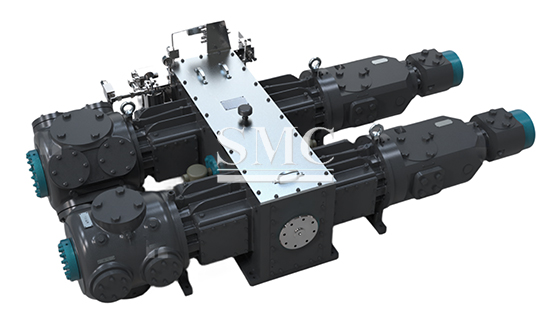

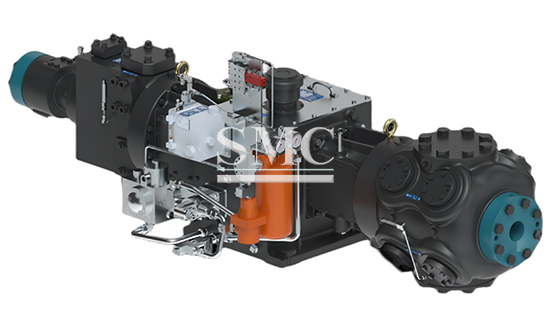

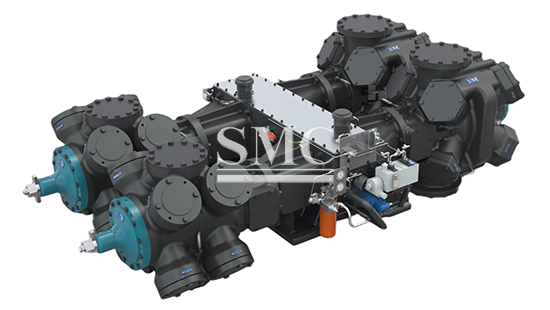

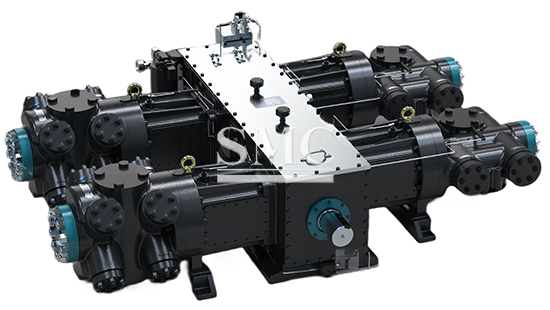

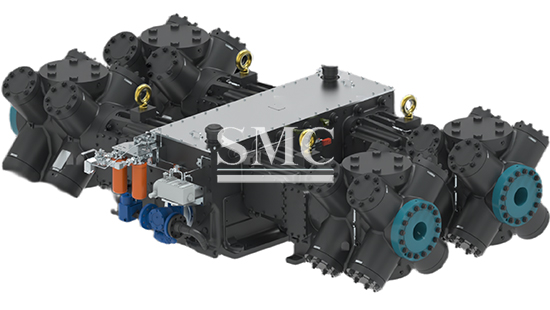

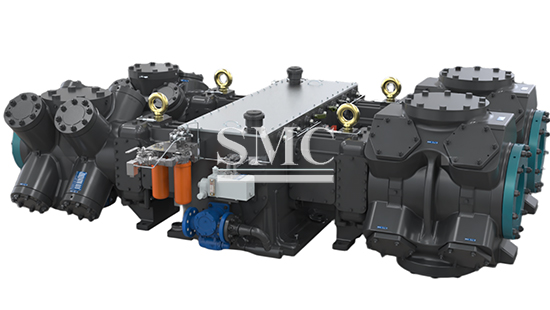

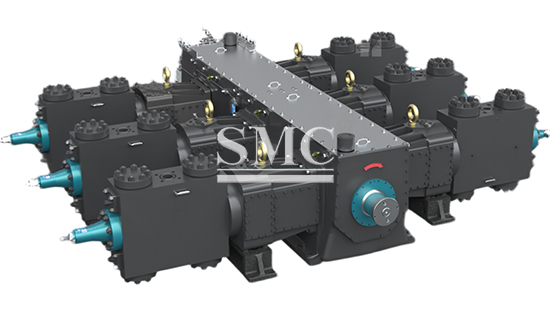

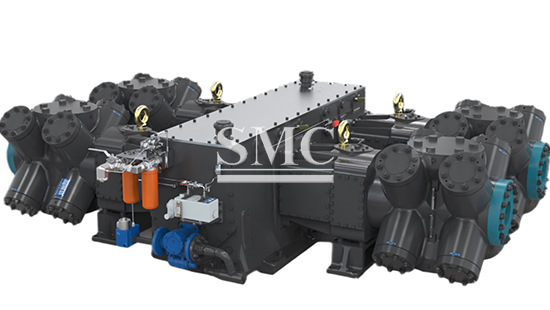

A reciprocating compressor or piston compressor is a positive-displacement compressor that uses pistons driven by a crankshaft to deliver gases at high pressure. When the crankshaft reciprocates, the intake valve will be opened and the exhaust valve will be closed. The intake valve will enter the compression cylinder, and then the intake valve will be closed. The piston movement will reduce the volume of the compression cylinder, compress the gas, and then the exhaust valve will be opened to discharge high-pressure gas.
If you want to know more about our products or Reciprocating Compressor price please feel free to contact us, we will reply you within 24 hours.
The Technical Information of Reciprocating Compressor:
|
Model |
Crank throw count |
Stroke/mm |
Frame power/kW |
Speed/RPM |
Piston rod diameter/mm |
Maximum gas rod load/kN |
|
SCHA |
2/4 |
76 |
216/432 |
600-1800/750-1800 |
28.5 |
58 |
|
SCHB |
2/4 |
90 |
300/600 |
900-1800 |
35 |
66 |
|
SCHD |
2/4 |
90 |
450/900 |
900-1800 |
40 |
90 |
|
SCHE |
2/4 |
127 |
886/1771 |
600-1400 |
51 |
178 |
|
SCHF |
2/4/6 |
152.5 |
1350/2700/4050 |
600-1200 |
57.2 |
231 |
|
SCHG |
2/4/6 |
152.5 |
1350/2700/4050 |
600-1200 |
63.5 |
289 |
|
SCHJ |
2/4/6 |
178 |
1860/3720/5580 |
450-1000 |
70 |
334 |
|
SCHK |
2/4/6 |
152.5 |
2250/4500/6750 |
450-1200 |
70 |
334 |
The Packaging of Reciprocating Compressor:
Standard export package or according to client's requirement.
