Welding Positioner

Load Capacity: 50kg, 100kg, 600kg, 1T, 2T, 3T, 10T

Worktable Diameter: 315mm, 400mm, 600mm, 1000mm, 2000mm

Product Type: Single-axis, Dual-axis, L-type, Head-Tail, Multi-station Rotary Positioner

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Mac Corporation is a leading welding positioner manufacturer and supplier.

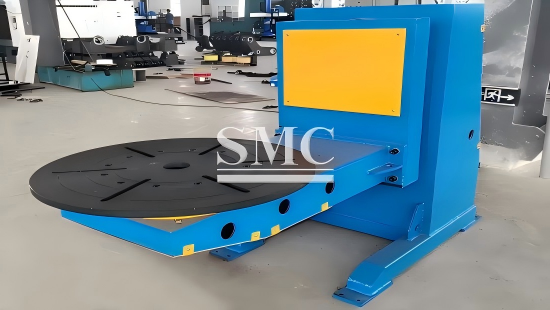

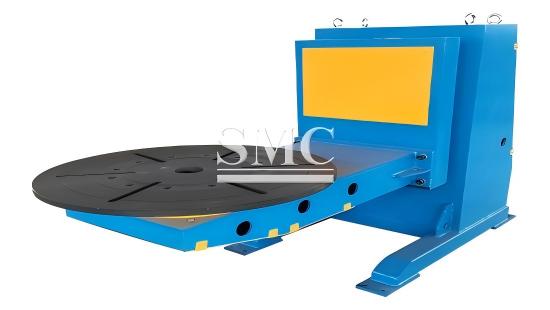

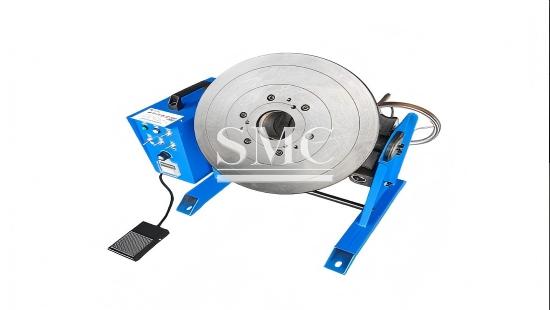

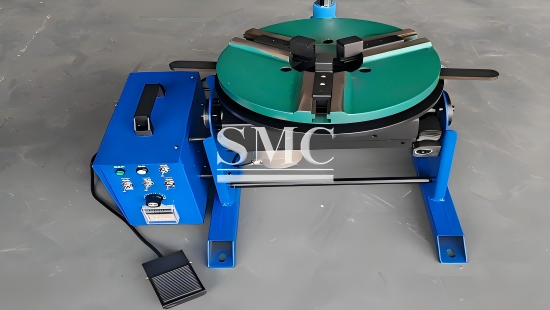

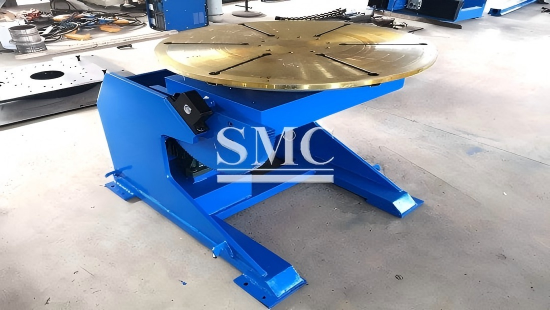

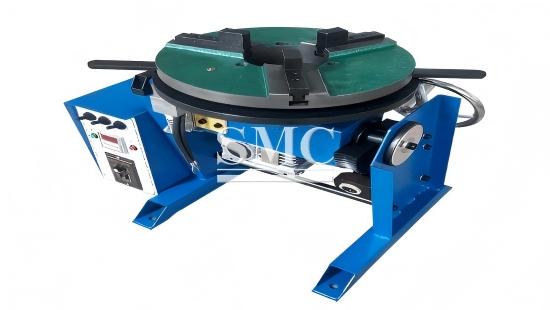

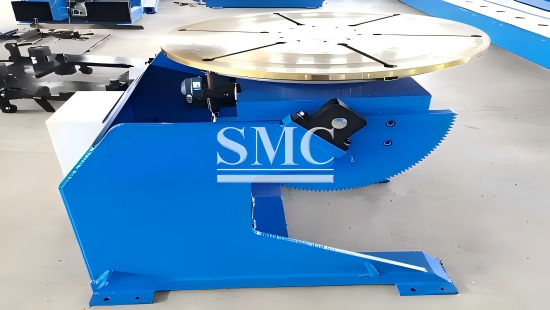

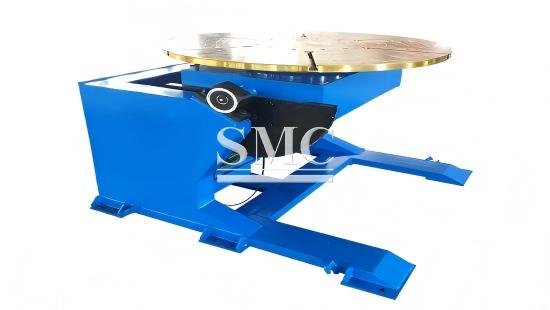

Our Welding Positioners deliver flexible multi-angle workpiece positioning for automatic and manual welding processes. There’s no need for repeated workpiece clamping or position readjustment during welding production. The heavy-duty frame and variable speed drive structure ensures steady, vibration-free rotation and tilting for flat-position welding with uniform forming. Its anti-rust, wear-resistant mechanical structure withstands long-cycle industrial operation and heavy load, preventing shaft deformation, speed jitter or transmission breakdown over time, delivering stable, labor-saving processing performance for vessel fabrication, flange welding and mechanical component assembly workshops.

If you want to know more about our welding positioner price please feel free to contact us, we will reply you within 24 hours.

1.Rotation Speed: 0.02-0.2r/min, 0.05-0.5r/min, 0.1-1r/min.
2.Tilt Angle Range: 0-90°, 0-120°.
3.Matching Motor Power: 0.37kW, 0.75kW, 1.5kW, 2.2kW, 3kW.

1.Steel Structure Fabrication: Welding processing for H-beams, metal frames and large structural workpieces.
2.Pressure Vessel & Pipeline Production: Rotary positioning for tanks, flanges and long pipeline welding.
3.Mechanical Component Workshop: Auxiliary positioning for auto parts, engineering machinery fittings.

1.Stable Rotary Positioning: Heavy-duty integral frame ensures smooth rotation & tilting, supporting precise flat-position welding for various metal workpieces.
2.Shake-Free Transmission Design: Precision gear and motor assembly avoids speed jitter, requiring no frequent parameter calibration during long-hour welding.

3.Long Service Life: Made of thick carbon steel and cast iron, it is wear-resistant, anti-rust and stable for continuous operation under heavy industrial loads.

Technical Information of Welding Positioner:

Standard Welding Positioner Parameters
Model	Load Capacity (kg) 0°/90°	Tilt Motor Power (kW)	Tilt Speed (r/min)	Tilt Angle (°)	Rotation Motor Power (kW)	Rotation Speed (r/min)	Table Diameter (mm)	Center of Gravity Distance (mm)	Eccentricity Distance (mm)
XHB-0.6T	600/300	0.37	0.53	0-90	0.37	0.1-1	750	100	50
XHB-1T	1000/500	0.75	0.37	0-120	0.75	0.1-1	1000	250	150
XHB-2T	2000/1000	1.5	0.37	0-120	1.5	0.1-1	1200	250	150
XHB-3T	3000/1500	1.5	0.37	0-120	1.5	0.06-0.6	1400	300	200
XHB-5T	5000/2500	3	0.37	0-120	2.2	0.05-0.5	1600	300	200
XHB-10T	10000/5000	4	0.37	0-120	3	0.05-0.5	2000	400	200
XHB-20T	20000/10000	7.5	0.3	0-120	5.5	0.02-0.2	2000	500	200

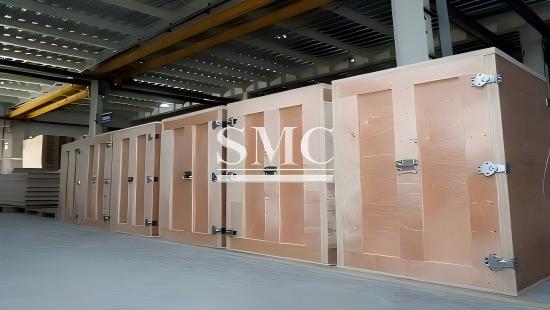

Packaging of Welding Positioner:
