Material: TPU

Max Working Pressure(mpa): 0.1 MPa

Dimension(l*w*h): 1.5*0.5*0.2m

Shape: Square Shape

Capacity: 150L or customized

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Mac is a leading Diesel Fuel Storage Bladder Tank manufacturer and supplier.

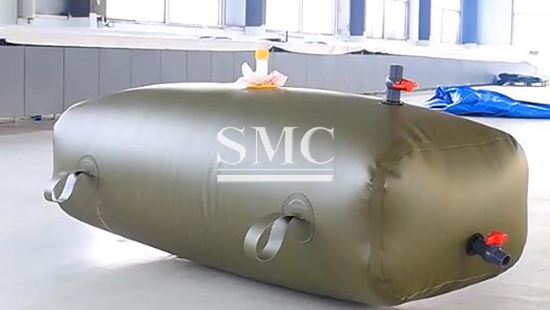

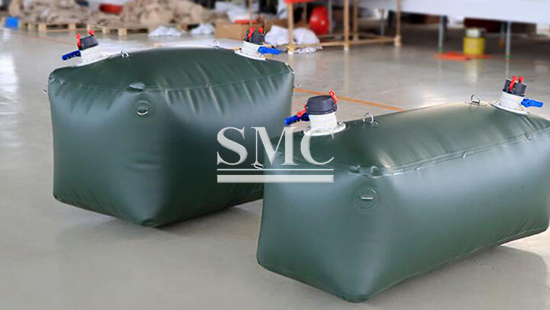

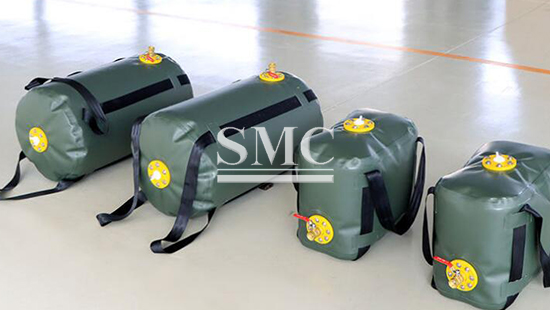

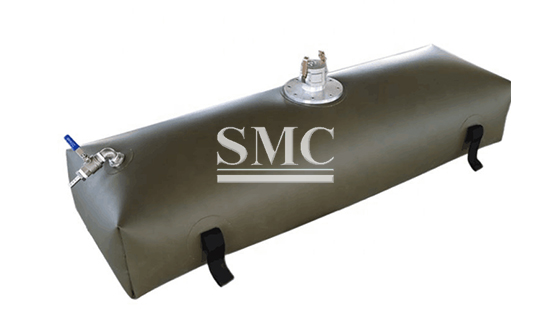

The Diesel Fuel Storage Bladder Tank is a portable container for diesel storage. It is usually made of oil-resistant materials such as high-strength TPU-coated polyester fabric, featuring good oil resistance, flexibility and durability. This diesel bag is foldable, easy to store and carry, making it suitable for scenarios like outdoor operations and vehicle backup fuel storage. It comes in various capacity specifications, ranging from as small as 5L to as large as 200L, which can meet the needs of different users.

If you want to know more about our Diesel Fuel Storage Bladder Tank price please feel free to contact us, we will reply you within 24 hours.

1. Material: TPU
2. Max Working Pressure (mpa): 0.1 MPa
3. Dimension(l*w*h): 1.5*0.5*0.2m
4. Shape: Square Shape
5. Capacity: 150L or customized

1. The Diesel Fuel Storage Bladder Tank can be fully folded, featuring small size and light weight, which greatly saves space and costs for carrying and transportation.
2. This Diesel Fuel Storage Bladder Tank is made of TPU-coated polyester fabric, which is oil-resistant, leak-proof, tear-resistant and wear-resistant, with a longer service life than ordinary plastic oil barrels.

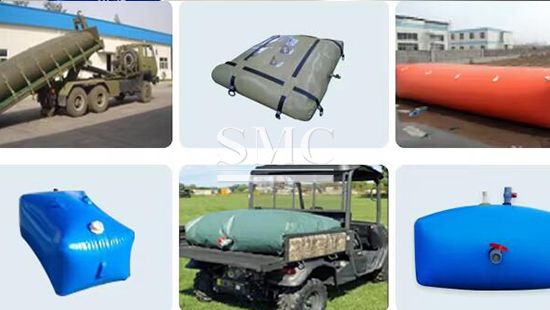

3. In addition to vehicle backup, it is also suitable for various mobile oil storage scenarios such as outdoor camping, agricultural machinery operations and engineering construction.

1.For emergency backup fuel storage in cars, trucks and engineering vehicles.
2.To store diesel for construction machinery and generators at outdoor job sites.
3.For refueling agricultural machinery like tractors and harvesters in fields.
4.To supply diesel for small generators during camping and outdoor activities.

Technical information of Diesel Fuel Storage Bladder Tank Material:

Technical Parameters of Diesel Fuel Storage Bladder Tank Material
Item	Unit	Test Standard	Test Result
Product Name	TPU tarpaulin	-	-
Specification	-	-	2000D encrypted 25+20T; 1.05mm gray
Tearing Strength	N	lengthway; crosswise	trisection tearing; ≥250N
Tensile Strength	N/5cm	lengthway; crosswise	4500; 4500
Peeling Strength	N/5cm	-	≥200N
Weight	kg/㎡	-	1200 - 1330
Thickness	mm	-	1 - 1.1
Width	m	-	1.8
