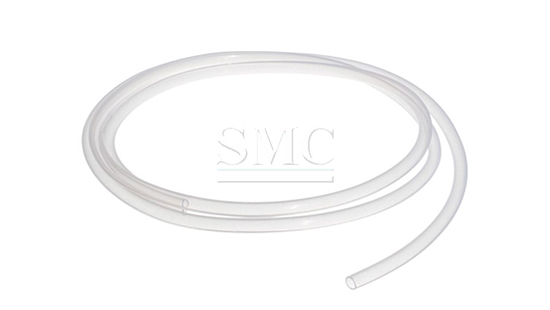

ETFE Tube

Material: Ethylene Tetrafluoroethylene (ETFE)

Transparency: Highly transparent (UV transmittance >90%)

Sterility Options: EO/gamma sterilizable

Product Detail

Product Detail

Shanghai Mac is a leading ETFE tube manufacturer and supplier.
ETFE tubes are hollow tubing products made from Ethylene Tetrafluoroethylene, a high-performance thermoplastic fluoropolymer. ETFE is known for its exceptional chemical resistance, high mechanical strength, and transparency. Compared with PTFE or PFA, ETFE offers greater toughness and abrasion resistance, though with slightly lower temperature tolerance.
These tubes are widely used in chemical, electrical, medical, and aerospace applications where durability, purity, and resistance to aggressive environments are critical.
If you want to know more about our ETFE tube products or price please feel free to contact us, we will reply you within 24 hours.

Size range: ID from ~0.5 mm to >25 mm; wall thickness 0.1–3 mm
Melting point: ~270°C
Tensile strength: ~40 MPa
Dielectric strength: ~60-100 kV/mm (excellent electrical insulation)
Elongation at Break: ~300–400%
Flame Rating: UL 94 V-0

High Chemical Resistance: Inert to strong acids, alkalis, solvents, and fuels.
Excellent Mechanical Toughness: Superior to PTFE/PFA in wear, cut, and impact resistance.
Electrical Insulation : Low dielectric constant, high dielectric strength.
Low Friction & Non-stick: Smooth inner surface resists scaling and contamination.
Sterilizable: Suitable for pharmaceutical and medical use.

Medical catheter tubings
Chemical pumps, linings and tubes
Wire and cable insulation
Fuel and hydraulic lines
Outdoor fluid transfer lines
