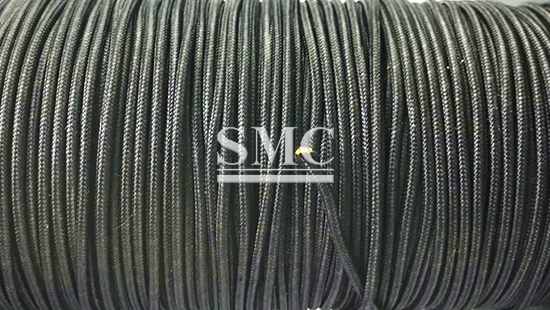

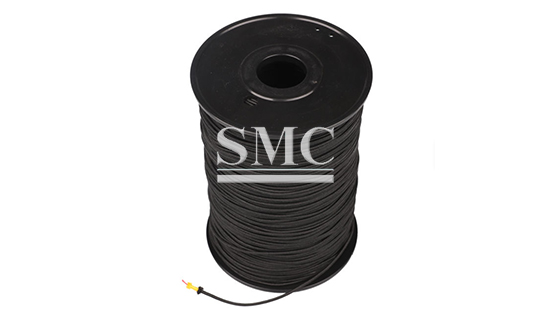

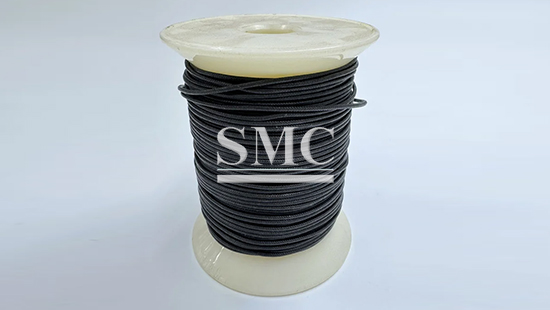

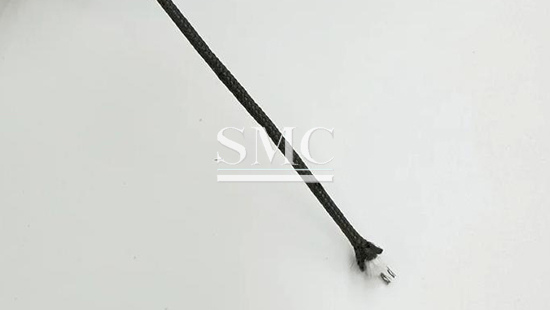

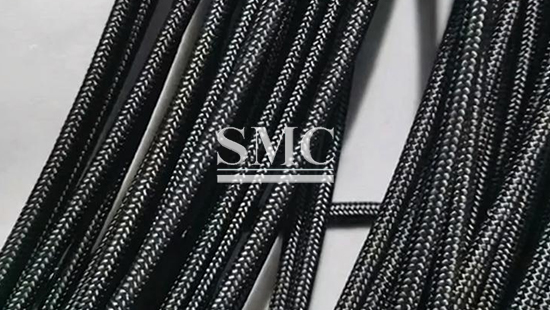

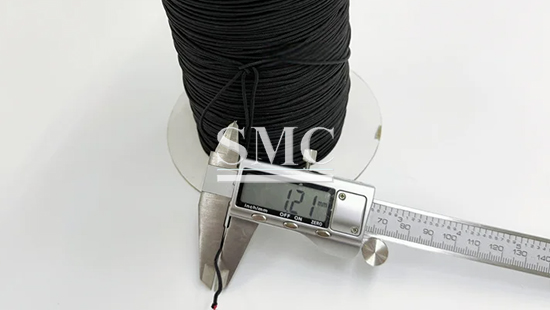

UHMWPE Braided Rope

Diameter: 0.5-3mm or customized

Material: UHMWPE

Technics: Braided/Twist/Sewing

Structure: 8/12/16/24/36 Strands, Double Braided

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Mac Corporation is manufacturer and supplier of UHMWPE Braided Rope.
High strength UHMWPE rope is a super smooth and sensitive rope made of UHMWPE high-strength polyethylene fiber and then reinforced with thread reinforcement technology. it is the lightest and strongest high-performance fiber in the world, with a diameter of 55% of nylon or polyester rope and 45% of polypropylene rope when the weight is less than 1/8 of steel cable with the same diameter and strength. The rope is impregnated with wear-resistant resin, which makes it super wear-resistant, low elongation, anti-aging, corrosion resistant and other remarkable characteristics.
Ultra high molecular weight polyethylene fibers can also float on water, resist the corrosion of most chemicals, have excellent UV resistance, are not affected by salt content, and do not absorb water. Due to the softness and lightness of the ultra-high molecular weight polyethylene fiber rope, it helps to reduce the physical workload of the crew, greatly reducing the pain and injuries on the back and hands of the crew. Due to the low elongation of ultra-high molecular weight polyethylene fiber ropes, there is almost no potential risk of rebound damage in the event of mooring rope breakage.
If you have demand of UHMWPE Braided Rope, Please feel free to contact with us, we will reply you within 24hours.

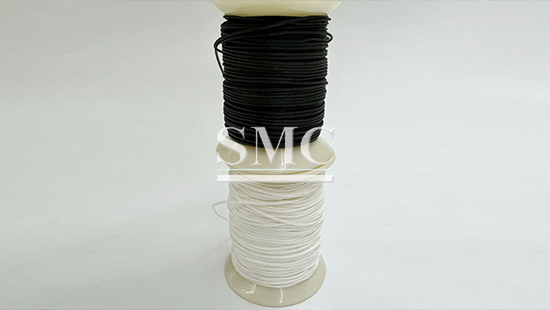

Color: White, Black, Red, Yellow, Green, Grey, Blue, Orange, etc
Type: Braided Rope

1. High specific strength and high specific modulus. The specific strength is more than ten times that of steel wire with the same cross-section, and the specific modulus is only second to that of high-grade carbon fiber.
2. The fiber density is low, ranging from 0.97 to 0.98g/cm3, and can float on the water surface.
3. Low fracture elongation, high fracture work, and strong energy absorption ability, thus possessing outstanding impact resistance and cutting resistance.
4. UV radiation resistance, neutron resistance, and X-rays have high specific energy absorption, low dielectric constant, and high electromagnetic wave transmittance.
5. Chemical corrosion resistance, wear resistance, and long bending life.

1.Safety Protection
2.Industrial sector
3.Rescue
4.Outdoor

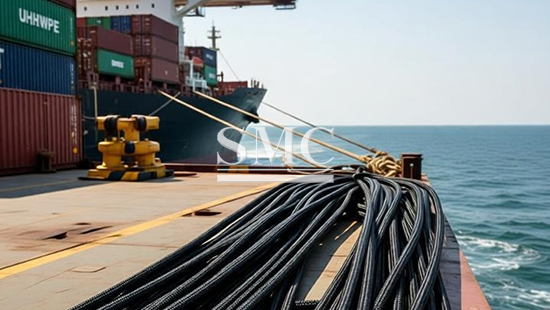

5.Marine

Technical Information of UHMWPE Braided Rope:

UHMWPE ROPE
SIZE		Weight	Breaking Strength
DIAM. (mm)	CIRC. (mm)	WEIGHT PER 100M (kg)	AVG.STRENGTH (Ton)
6	18	2.2	13
8	24	3.7	32
10	27	5.2	45
12	33	6.3	72
14	42	11.1	100
16	48	14.9	150
18	54	19.3	189
20	60	24.7	229
22	66	28.1	273
24	72	33	322
26	78	39.1	371
30	90	51.9	562
32	96	58.9	612
34	108	72.6	671
38	120	90.9	789
42	132	109	964
46	144	128	1157
50	156	152	1364

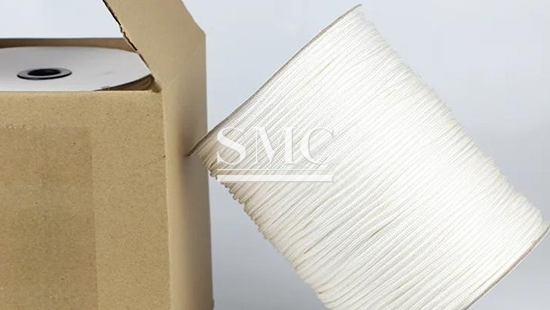

Packaging of UHMWPE Braided Rope

Shanghai Mac Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Mac Standard

2) Customization
