Container Lifting Jacks

Voltage: 24/220/380V

Single Lifting Weight: 10 ton

Total Lifting Weight: 40 ton

Product Detail | Technical Information

Product Detail

Shanghai Mac is a leading Container Lifting Jacks manufacturer and supplier.

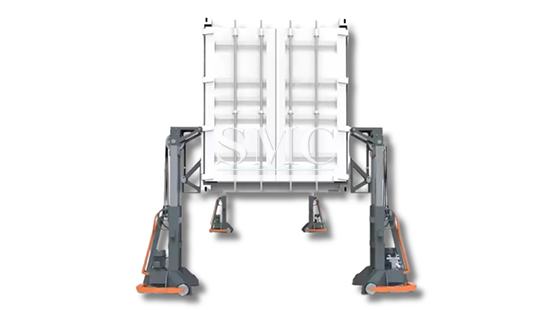

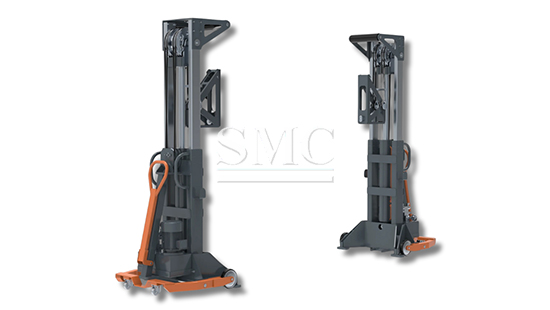

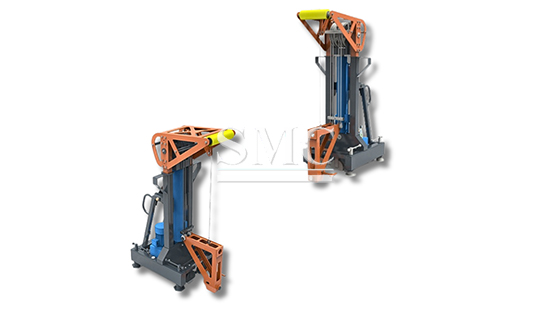

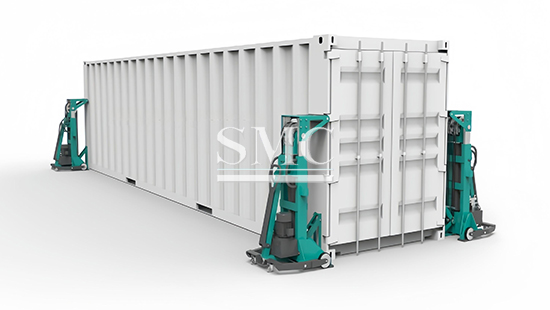

Container Lifting Jack is a type of equipment developed to solve the inconvenience of loading and unloading goods in containers, improving safety and loading and unloading efficiency for container landing operations. It is an ideal choice for factories, warehouses, and low to medium container throughput enterprises, and a convenient and cost-effective alternative to other crane equipment. The required equipment investment and operating costs are only a small part of traditional container loading and unloading costs.

If you want to know more about our other Lifting Machinery products or Container Lifting Jacks price please feel free to contact us, we will reply you within 24 hours.

1. Maximum Lifting Weight: 40 ton
2. Maximum Lifting Height: 1600 mm
3. Power: 2.2 KW

1. High loading capacity
2. Hydraulic drive system
3. Applicable to multiple sizes of containers

1. Taking container on and off from trailor
2. Warehouse lifting device
3. Loading/unloading in narrow places

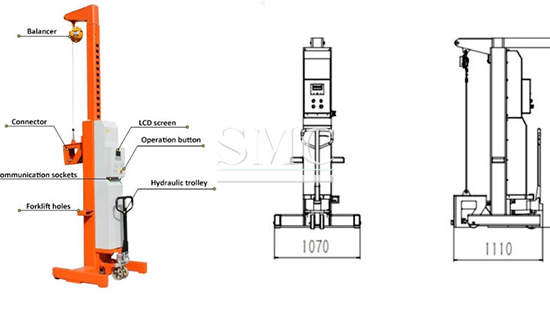

Technical Information of Container Lifting Jacks:

Load capacity	10T each unit, total is 40T
Lifting height	1600mm
Lifting speed	22mm/s
Motor power	2.2kw
Voltage	24/220/380V
Dimensions	120010902568mm
Synchronous or not	Synchronous
Hydraulic cylinder acting type	Double acting
Cylinder material	20#/45# Steel
